Autumn’s Bike

As you might guess, in order to ride your bike across Europe you need to have a bike. You could probably do it on any old bike, but being the bike nerd that I am, that was out of the question for us.

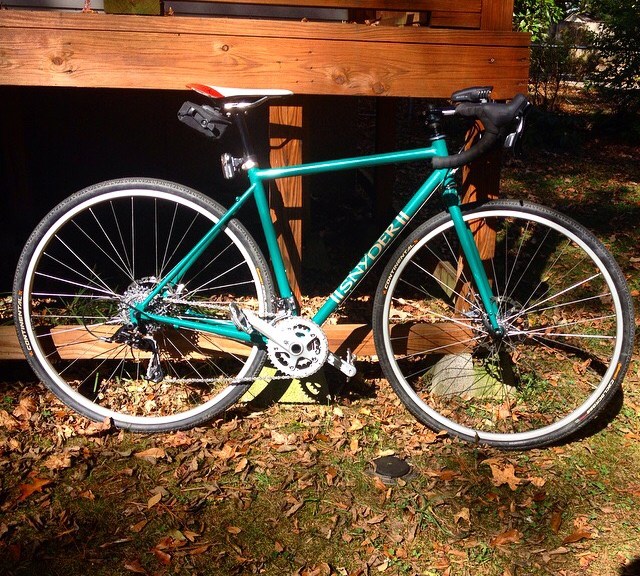

We’re going to be spending a lot of time using these bikes so I wanted to make sure everything was just right. For the past 2 years I’ve been an apprentice to Seth Snyder of Snyder Cycles and I decided to build Autumn a bike from scratch rather than get a stock touring bike. Over the past eight months or so I went from a bunch of pieces of metal to this.

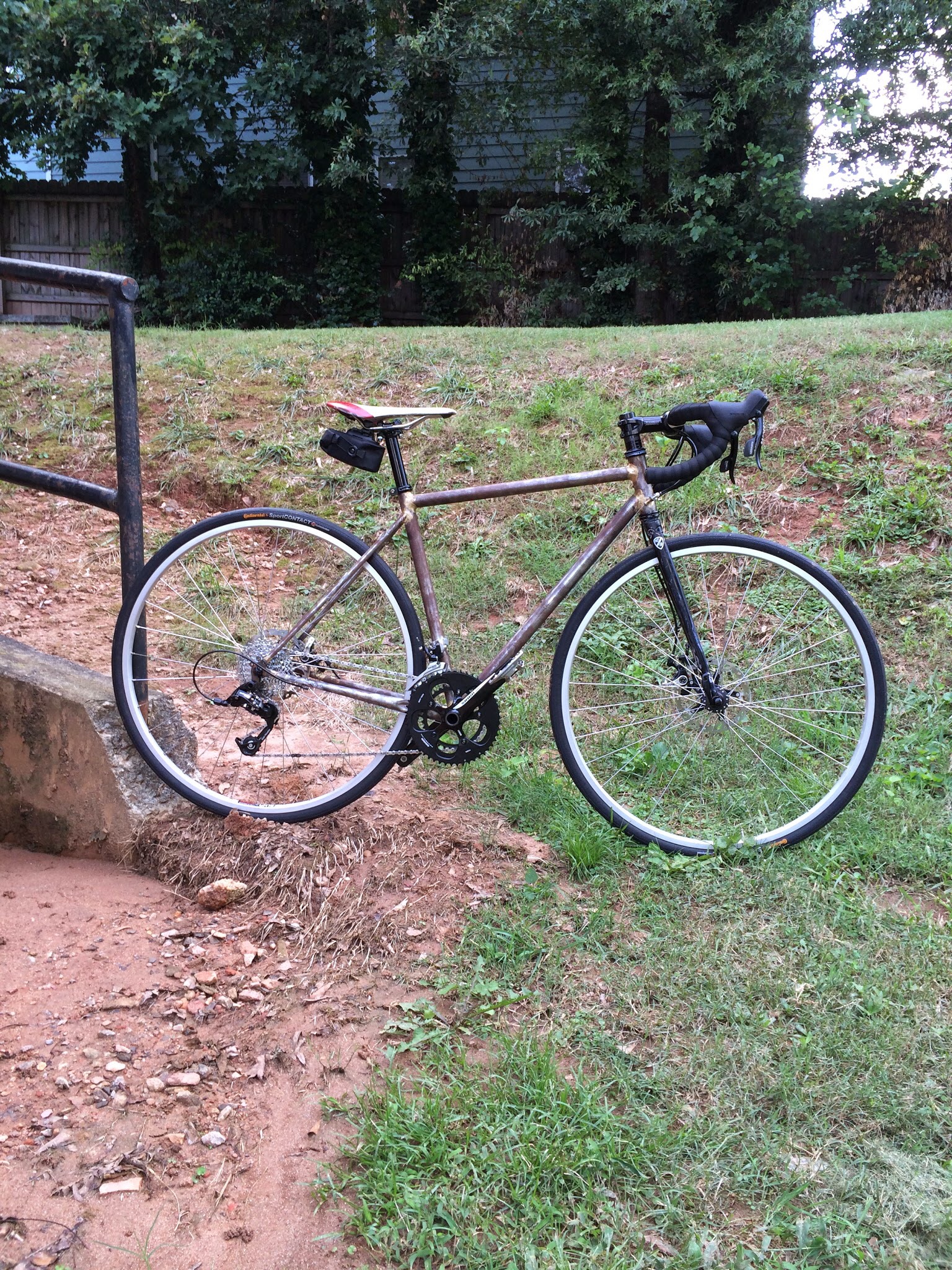

IMG_1949.JPG It was unpainted for a while before I powder coated it the color Autumn picked, Winter Mint.

This is the first frame I have built and I learned a ton in the process. I went into my apprenticeship with no real metalworking knowledge and now have built an entire bike, and helped to build a bunch of others. Being my first, it has its quirks and it isn’t perfect, but it rides nicely and does what it’s supposed to so I can’t complain. If I were going to do it again it would have room for bigger tires, possibly 650b wheels and no toe overlap, but you live and learn. It’s incredibly satisfying to design and build something from scratch that is useful and will last for a lifetime. This winter I will be working on another similar frame for myself to take on tour.

This slideshow requires JavaScript.

Here’s some info about the build for those of you who care to know.

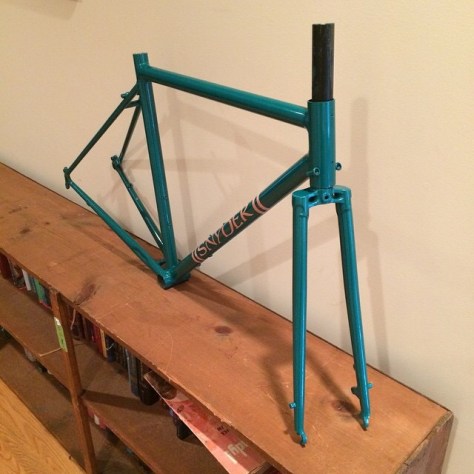

The frame is fillet brazed True Temper steel tubing with a 51.5cm top tube, tall head tube, clearance for 35mm tires or 32’s with fenders and internal routing for the chainstay mounted disc brake.The fork is an All City painted to match.

The bike is built with SRAM Apex and TRP Spyre mechanical disc brakes. The cranks are Sugino OX601s geared at 26/40 with an 11-32 cassette for a nice low-end range. The wheels are CR18s with Shimano SLX hubs and 32 spokes laced 3 cross rear and 2 cross front.

Autumn has already logged over 500 miles on the bike since September getting ready for the trip (and it hasn’t fallen apart yet…) There have been and probably still will be a few small changes before we leave (racks, bags, fenders, Brooks saddle, etc), but for the most part this is the bike that will carry her across Europe.

Note from Autumn:

It’s so pretty. I can’t tell you about the technical stuff, but I love this bike. I love that with this bike Haegan has taught me more about bikes than I ever thought I would need to know. I love that he’s showed me how to be a cyclist on this bike, and I think I’m getting better at it. I love that I got see the process of how it was made, every step from the sketches to the final product. I love knowing that this is the bike I’ll be seeing Europe on. What I really love though, is that Haegan made it. The act itself is incredibly flattering and I’m still in a bit of disbelief. I really don’t have words to describe my gratitude, awe, and admiration. He’s a pretty cool guy, with a pretty cool skill. I guess he’s worth keeping around 🙂
